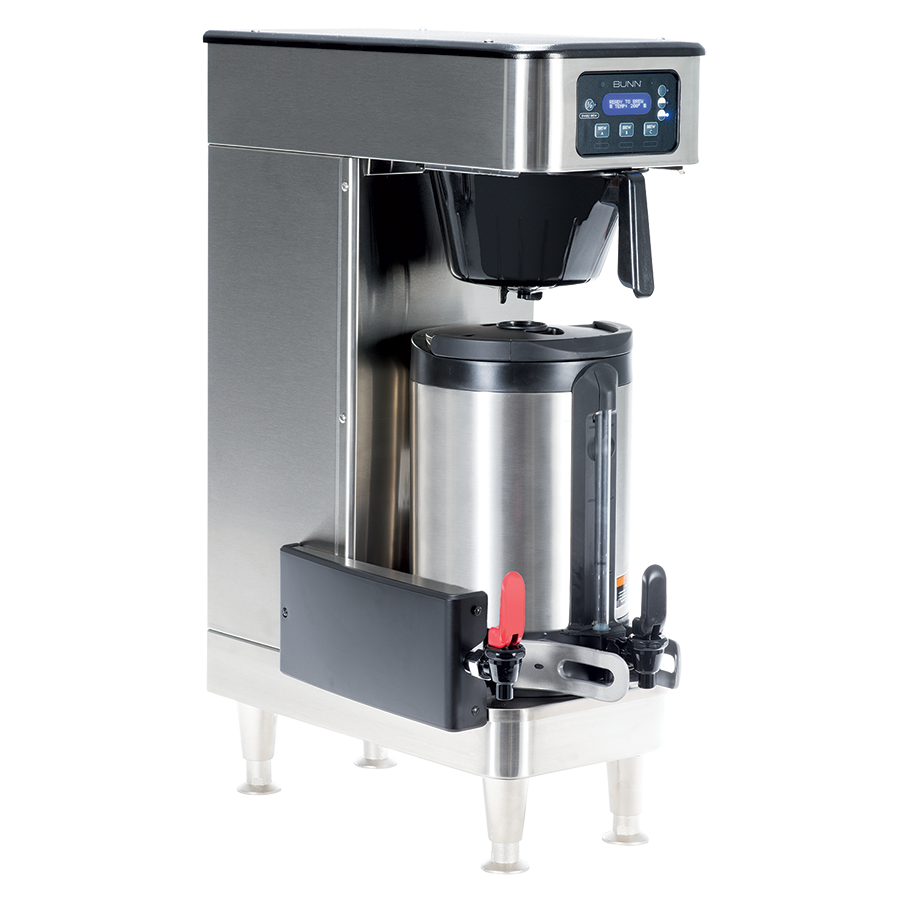

Single brewer utilizing modern Soft Heat® servers: the New Standard in
Batch Brewing – Thermal Server (sold separately)
Features:
- Sleek, modernized design language on the brewer and servers
- Better positioned fast flow hot water faucet with greater cup clearance
- Bright blue LED light indicators prominently show unit is operational
- BUNN Infusion Series technology allows for multiple recipes from one footprint with six brew buttons and three batch sizes
- Brew batches of .5gal, 1gal or 1.5gal (1.9, 3.8 or 5.7L)
- Exclusive Peak Extraction™ Sprayhead is multi-directional with a 17-hole design to ensure ultimate uniformity of extraction
- USB programming
- New
Soft Heat® servers are ergonomic, lighter weight, energy efficient and
now offer programmable recipe/batch based holding times and
temperatures, alerting staff when freshness has expired or server is
empty
Electrical Configuration:
- Capacity: Incoming water temp of 60oF (15.5oC)
- Electrical: Requires 3-wires plus ground service rated 120/240V, single phase, 60Hz. Brewer is supplied without a cord set.
- Plumbing: 20-90 psi (138-621 kPa). Supplied with 3/8” male flare fitting.
- Volts-Factory Wired: 120/240
- Phase-Factory Wired: 1
- Watts-Factory Wired: 4050
- Hertz-Factory Wired: 60
- Amps-Factory Wired: 16.8
Usage and Specifications:
- Channel:
College and University, Healthcare, Lodging and Hospitality, Office System, Specialty
- Water Access:
Plumbed
- Water Type:
Hot – Precision Temperature
- Volts-Factory Wired:
120/240
- Coffee Capacity Range:
Medium
- Brewer Type: Satellite Systems
- Coffee Server Type: Thermal Server (sold separately)
- Finish:
Stainless
- Number of Wires (+GND): 3
- 2D Format CAD Available:
Yes
- Minimum Input Pressure:
20 PSI
- Maximum Input Pressure:
90 PSI
- Inlet Water Fitting: 3/8″ Male Flare Fitting
- Legs:
4″ Satin Nickel Legs
- BrewWISE:
Yes
- Digital Brewer Control:
Yes
- Faucet Location:
Side
- Funnel Type:
Smart Funnel
- Machine Height:
26.8 in
- Machine Width: 10 in
- Machine Depth: 22 in
