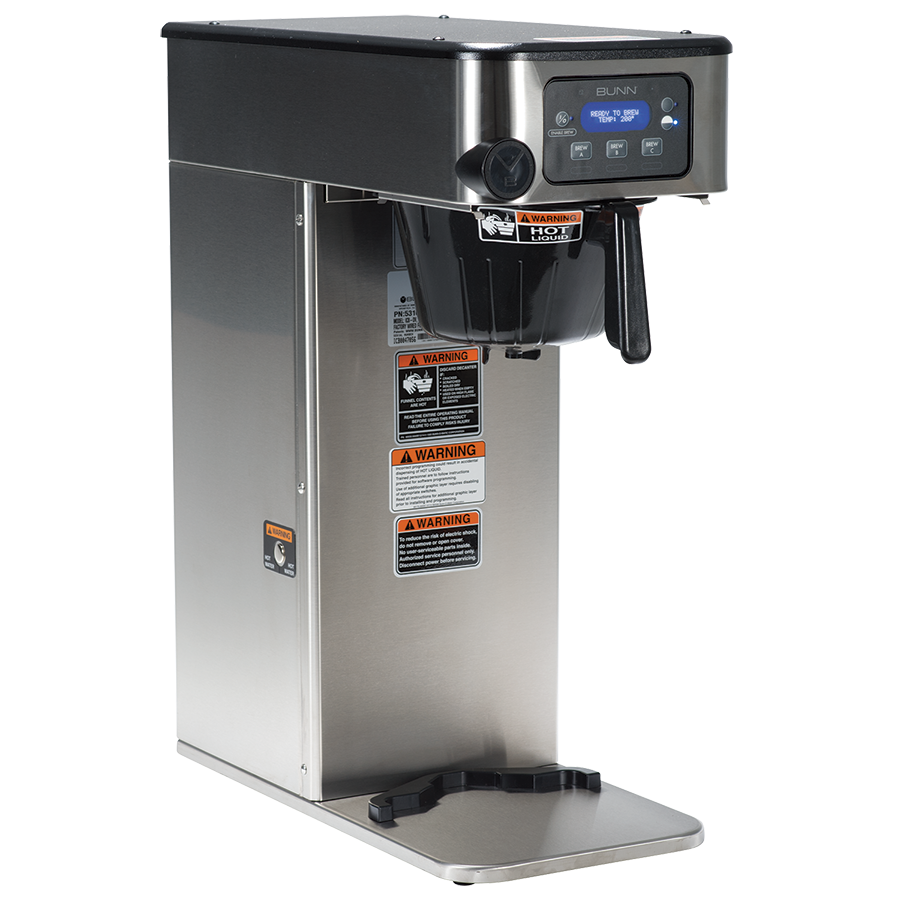

The New Standard in Batch Brewing. Three brew buttons allow for easy
selection from a variety of brew recipes. The Peak Extraction
sprayhead provides improved uniformity of extraction and greater
resistance to lime scale buildup.
SERVER SOLD SEPARATELY
Features:
- Sleek modernized design language, with rounded angles on the corners and trunk
- Intuitive visual cues and petal-shaped handles on the brew basket enhance user-interaction
- Contrasting stainless steel and black colors create a distinctive, refined look
- Digital
readout displays in English, Spanish, or French —for easier
programming and control— and can show either ‘Standard’ or Metric
measurements. Digital readout also shows machine status, and targeted
advertising messages can be programmed for display - BUNN Infusion Series technology allows for multiple recipes from one footprint — with three brew buttons and two batch sizes
- Energy-saver mode reduces tank temperature during idle periods
- Exclusive Peak Extraction™ Sprayhead is multi- directional with a 17-hole design to ensure ultimate uniformity of extraction
- Electronic funnel lock prevents removal of each brew funnel until drip- through is complete
- USB programming capable
- Brew counter keeps track of how many batches are brewed
- Pre-infusion
and pulse brew for maximum flavor extraction. Cold brew lockout &
digital temperature control further ensure top-notch brewing - Includes overlay kit for customization of brewer interface
- Brews
into 2.5 to 3.8 liter (84 to 128 ounce) airpots, and 3.8 or 5.7 liter
(1 or 1.5 gallon) baseless ThermoFresh® servers — for easy transport
of coffee to other locations [servers not included] - Hot water faucet (supplied for custom installation)
- Some models are dual voltage adaptable (Can operate at 120V/15 amp or 120/208-240V/20 amp)
- Large 3gal (11.4L) tank provides back-to- back brewing capacity at 120/208-240V applications
Electrical Configuration:
- Capacity: Incoming water temp of 60oF (15.5oC)
- Electrical: Requires 2-wires plus ground service rated 120/240V, single phase, 60Hz. Brewer is supplied with a cordset and a NEMA 5-15P plug. Receptacle is not included (NEMA 5-15P).
- Plumbing: 20-90 psi (138-621 kPa). Supplied with 3/8” male flare fitting.
- Volts-Factory Wired: 120
- Phase-Factory Wired: 1
- Watts-Factory Wired: 1700
- Hertz-Factory Wired: 60
- Amps-Factory Wired: 14.1
Usage and Specifications:
- Channel:
College and University, Healthcare, Lodging and Hospitality, Office System, Specialty
- Water Access:
Plumbed
- Water Type:
Hot – Precision Temperature
- Volts-Factory Wired:
120
- Coffee Capacity Range:
Medium
- Brewer Type: Thermal Systems
- Coffee Server Type: Thermal Server
- Finish:
Stainless
- Number of Wires (+GND):
2
- Cord Attached:
Yes
- Plug Type:
NEMA 5-15P
- 2D Format CAD Available:
Yes
- Minimum Input Pressure:
20 PSI
- Maximum Input Pressure:
90 PSI
- Inlet Water Fitting: 3/8″ Male Flare Fitting
- Temp/Time Setting:
212° F
- Machine Height:
26.8 in
- Machine Width: 10 in
- Machine Depth: 22 in
Paper Filters: https://www.espressoplanet.com/BUNN-Paper-Filters-For-ICB-Brewer-20138.0000.html
