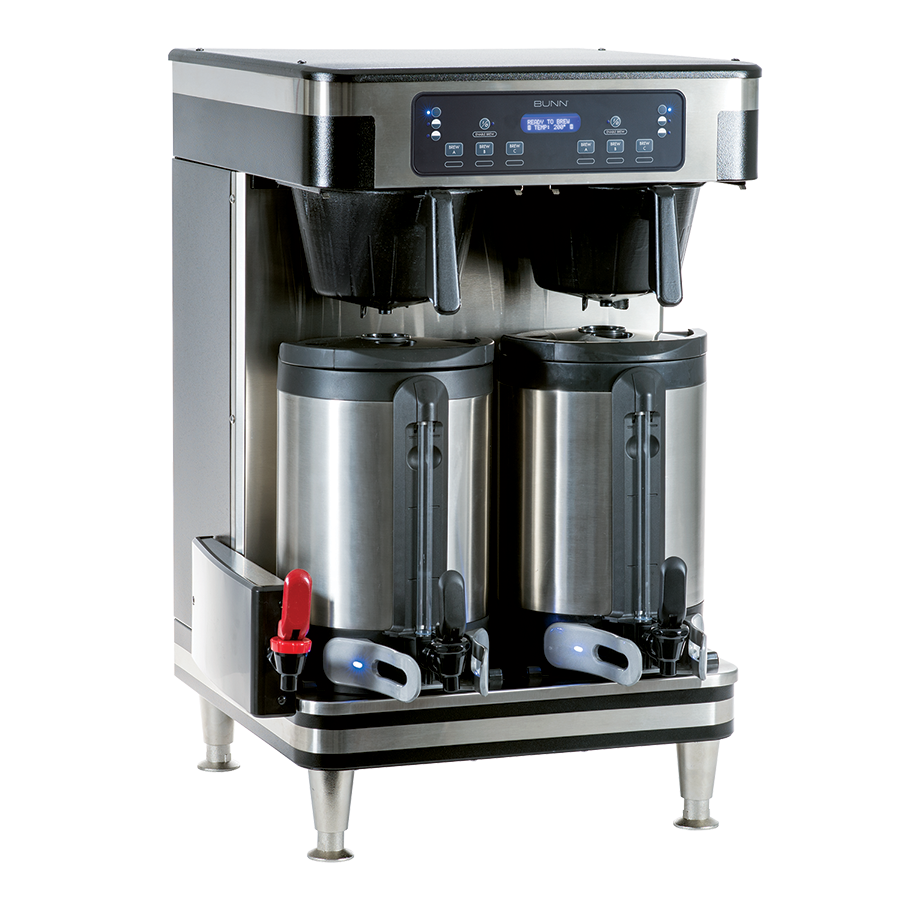

Twin brewer utilizing modern Soft Heat® servers: the New Standard in
Batch Brewing
Features:
- Sleek modernized design language, with rounded angles on the corners
and trunk - Digital readout displays in English, Spanish, or
French —for easier programming and control— and can show either
‘Standard’ or Metric measurements. Digital readout also shows machine
status, and targeted advertising messages can be programmed for
display. - BUNN Infusion Series technology allows for multiple
recipes from one footprint — with six brew buttons and three batch
sizes - Energy-saver mode reduces tank temperature during idle
periods - Exclusive Peak Extraction™ Sprayhead is multi-
directional with a 17-hole design to ensure ultimate uniformity of
extraction - Electronic funnel lock prevents removal of each brew
funnel until drip- through is complete - USB programming
capable - Brew counter keeps track of how many batches are
brewed - Pre-infusion and pulse brew for maximum flavor
extraction. Cold brew lockout & digital temperature control further
ensure top-notch brewing. - New Soft Heat® servers [sold
separately] are ergonomic, lighter weight, energy efficient and now
offer programmable recipe/batch based holding times and temperatures,
alerting staff when freshness has expired or server is empty
Electrical Configuration:
- Incoming water temp of 60oF (15.5oC)
- Electrical: Requires 3-wires plus ground service rated 120/240V, single phase, 60Hz. Brewer is supplied with a cordset and a NEMA 5-15P plug. Receptacle is not included (NEMA 5-15P).
- Plumbing: 20-90 psi (138-621 kPa). Supplied with 3/8” male flare fitting.
- Volts-Factory Wired: 120/240
- Phase-Factory Wired: 1
- Watts-Factory Wired: 6000
- Hertz-Factory Wired: 60
- Amps-Factory Wired: 25
- Capacity (servings/hour): 280
Usage and Specifications:
- Channel:
Amusement, College and University, Convenience Store, Full Service Healthcare, Lodging and Hospitality, Quick Serve, Restaurant
- Water Access:
Plumbed
- Water Type:
Hot – Precision Temperature
- Volts-Factory Wired:
120/240
- Coffee Capacity Range:
Medium
- Brewer Type: Satellite Systems
- Coffee Server Type: Satellite Server
- Finish:
Stainless/Black
- Number of Wires (+GND): 3
- Cord Attached:
Yes/No Plug
- 2D Format CAD Available:
Yes
- Minimum Input Pressure:
20 PSI
- Maximum Input Pressure:
90 PSI
- Inlet Water Fitting: 3/8″ Male Flare Fitting
- Required Water Flow: 1
- Legs: 4″ Stainless Steel Legs
- Faucet Location: Side
- Funnel Type: Black Plastic
- Machine Height: 32.9 in
- Machine Width: 21.9 in
- Machine Depth: 23.4 in
